Limelight has been utilizing an IP rated wireless DMX signal communication system with great success in multiple outdoor lighting situations that require long distance communication between fixtures to call up colour changes and scenes.

The SL5053 is the “go to” device to deliver seamless transmission signals over short to medium distances – typically 0-300 metres within indoor and outdoor applications.

The SL5053 transceiver is robust in design and a reliable means of signal communication without the need to install control cables in difficult access areas or retrofit design situations.

Operating across RF 2.4Ghz band width and with the 7 selectable channels to choose from even problematic high signal traffic areas can be dealt with to provide a stable communication pathway for your next lighting display, event or installation.

Essentially, employing the IP65 rated SL5053 wireless DMX transceiver gives you complete freedom of lighting design and professional looking installations.

Typical Applications of the Wireless DMX Long Range Controller System

  • Projects requiring long range lighting control
  • Large landscape projects
  • Commercial and industrial lighting applications

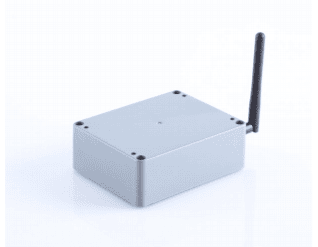

DMS Long Range Controller System (Wireless)
Specifications
­
Input Voltage:
12VDC Plugin Power Supply Included
Power Consumption:
< 2W Passive
DMX Protocol:
DMX512
RF Communication Signal:
2.4 GHz ISM Band
Enclosure Dimensions:
115x90x55mm
DMX Connections:
XLR 3 Pin
Unique RF Band Selection:
Select up to 7 Unique Frequencies
RF Operating Distance:
> 300Mtr Range
Optional Accessory:
20dBi Boosted RF Antenna
IP Protection Rating:
IP20 (IP65 by special request)
